Most families in Bhopal searching for a 30x40 ghar ka naksha start with the same question: is ₹30 lakhs actually enough for a 3BHK, or will costs balloon the moment construction begins?
The honest answer is — it depends on four things: your zone in Bhopal, your soil type, your design choices, and whether you build ground floor only or G+1. Get all four right and ₹30 lakhs builds a solid 3BHK. Get one wrong and the number crosses ₹38 lakhs before painting starts.
→ Before hiring anyone, compare architects and contractors on BidandBuild — free, no obligation.
Quick Answer: Can You Build a 3BHK Under ₹30 Lakhs in Bhopal?
Yes — a compact 3BHK on a 30x40 plot is possible under ₹30 lakhs in 2026 in Bhopal for ground floor construction. If you keep built-up area to 1,000 sq ft, use fly ash bricks, and standard finishes, it costs ₹27.6L–₹36L depending on your zone and soil. In Kolar Road and Hoshangabad Road it is cheaper than Bawadia Kalan. A G+1 duplex on the same plot will cost ₹45L–₹65L. See our full duplex cost breakdown for the next budget tier.
What Size House Can ₹30 Lakhs Build on a 30x40 Plot?
Your 30x40 plot is 1,200 sq ft. What you actually build is called built-up area — and that number drives your cost more than any other factor.
| Built-up Area | What You Get on 30x40 | Cost in Bhopal 2026 |
|---|---|---|
| 900–1,000 sq ft | Compact 3BHK Ground Floor with Parking | ₹22L–₹28L |
| 1,100–1,200 sq ft | Standard 3BHK Single Floor | ₹27.6L–₹36L |
| 1,800–2,000 sq ft (G+1) | 3BHK Duplex | ₹45L–₹65L |
With BMC FAR of 1:2, you can legally build up to 2,400 sq ft total on this plot (G+2). But under ₹30 lakhs, stick to ground floor only — adding a floor pushes you firmly into the ₹45L+ range.
Always keep a 10–15% contingency buffer on top of your base budget. For a ₹30 lakh project, set aside ₹3–4.5 lakh separately for black cotton soil conditions, price escalation, and BMC approval costs. Every Bhopal homeowner who skips this regrets it.

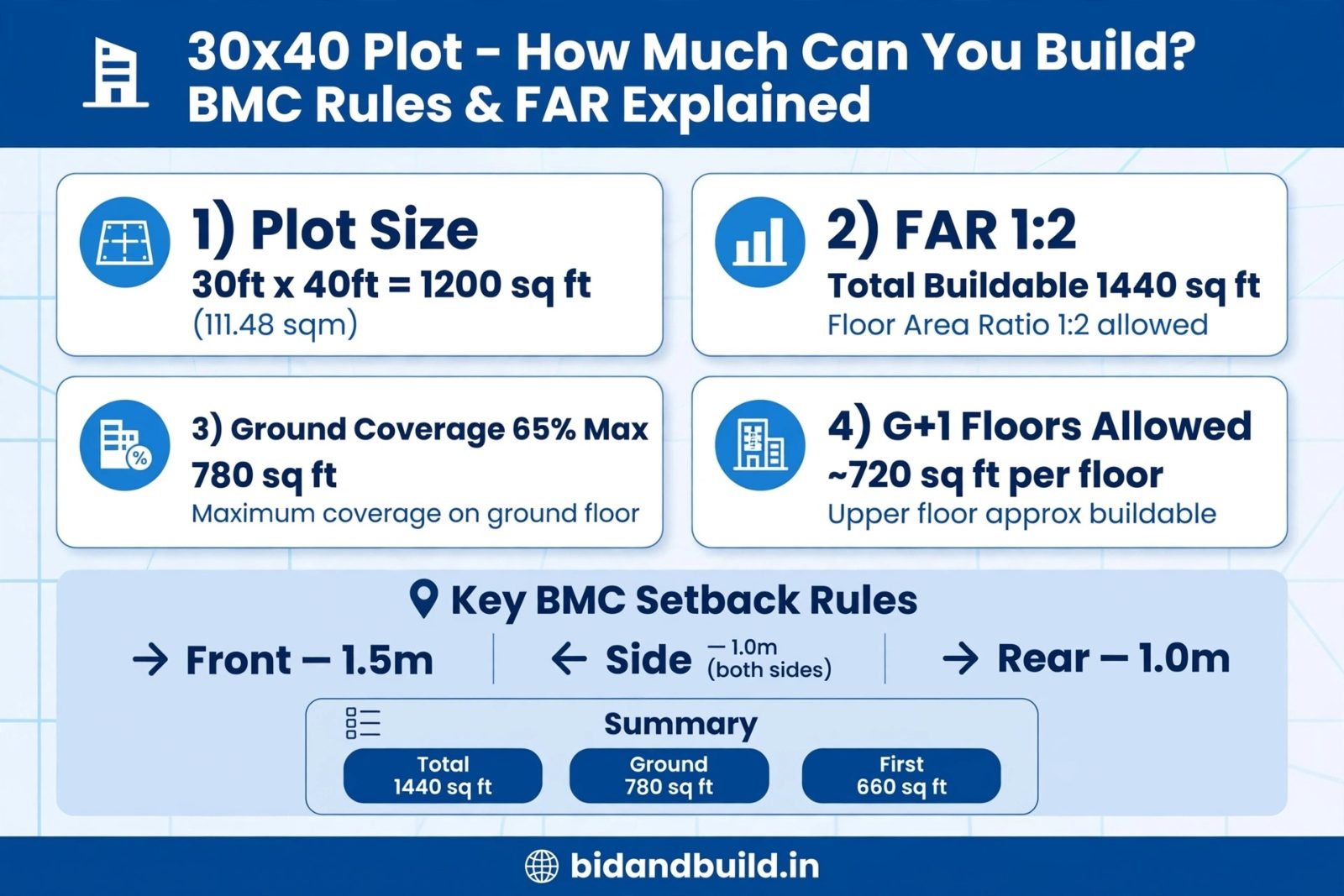

BMC Rules for 30x40 Plot in Bhopal — FAR, Setbacks & Floors
Before your architect draws a single line, these BMC rules lock in how much of your plot you can actually use:
- Front setback: 3m on main road, 1.5m on internal 20ft road
- Rear setback: 1.5m minimum
- Side setback: 1m if you need a window on that wall
- FAR for 30x40 plot: 1:1.5 to 1:2 — meaning 1,800–2,400 sq ft total across all floors
- Floors allowed: G+2 legally if road is 30ft+. Practically, 90% of Bhopal homeowners build G+1
If you plan to add a second floor later, design your columns and foundation for G+1 today — building that structural capacity now costs far less than retrofitting it later. For the complete Bhopal building approval process including ABPAS 3.0 online submission, see our dedicated building plan approval guide for Bhopal.
Construction Cost Per Sq Ft — City-Wise Comparison (2026)
| City | Cost Per Sq Ft (Standard) |
|---|---|
| Bhopal | ₹1,900–₹2,200 |
| Indore | ₹2,000–₹2,300 |
| Patna | ₹1,900–₹2,100 |
| Nagpur | ₹2,100–₹2,400 |
| Jaipur | ₹2,100–₹2,400 |
| Lucknow | ₹2,000–₹2,300 |
| Pune | ₹2,200–₹2,800 |
| Bengaluru | ₹2,500–₹3,000 |
| Delhi / NCR | ₹2,500–₹3,200 |
In Tier-2 cities like Bhopal, a ₹30 lakh 3BHK is very achievable. The same project in Mumbai or Delhi costs ₹50L+.
Zone-wise construction rates in Bhopal 2026:
- Kolar Road, Karond, Bairagarh: ₹1,500–₹2,200 per sq ft
- Hoshangabad Road, Shahpura, Mandideep outskirts: ₹1,200–₹1,800 per sq ft
- Bawadia Kalan, Arera Colony: ₹2,000–₹2,800 per sq ft (higher due to labour and material access)
For a full area-wise breakdown of Bhopal construction rates, see our dedicated house construction cost in Bhopal guide.
30x40 House Plan with 3BHK and Car Parking — The Most Searched Layout

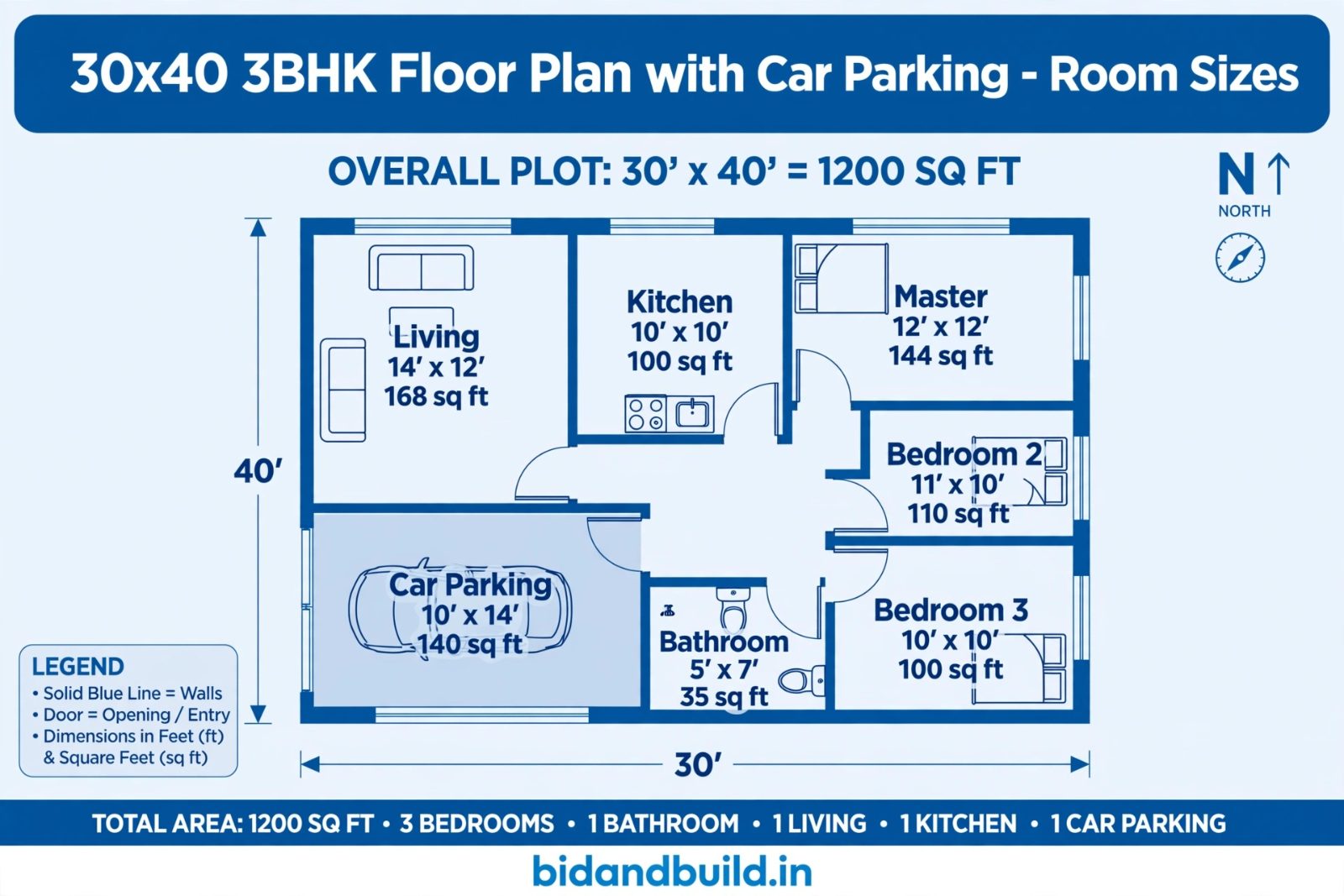

Sample 30x40 ghar ka naksha — 3BHK with car parking, 1,000 sq ft built-up. East facing main entrance.This is what every Bhopal family wants — a 30x40 house plan with car parking that fits the whole family comfortably.
Parking: 10×14 ft in front (140 sq ft). Fits a Baleno or Swift comfortably. For a Thar or Scorpio, extend to 10×16 ft. Keep the staircase inside the parking zone — this saves 80 sq ft inside the main living area.
Ground Floor layout (1,000 sq ft built-up):
- Living room: 14×12 ft
- Kitchen with utility: 10×10 ft
- Bedroom 1 (guest): 10×10 ft
- Bedroom 2: 11×10 ft
- Master bedroom with attached toilet: 12×12 ft
- Common toilet
- Car parking with staircase
30x40 East Facing House Plan: Main door East, kitchen South-East, master bedroom South-West. East facing is the most demanded layout in Bhopal for resale value and Vastu compliance — but North and South facing layouts work equally well with the same room sizes, just with the entrance rotated accordingly.
30x40 House Plan with Pooja Room: On a single floor, a 4×4 ft pooja corner in the North-East of the living room is the standard solution. In a G+1 duplex, a dedicated 5×6 ft pooja room on the first floor is practical and commonly preferred.
30x40 Duplex Layout (G+1):
- Ground: Parking + Living + Kitchen + 1 Bedroom
- First Floor: Master Bedroom + 2 Bedrooms + Pooja + Balcony
For design inspiration across different duplex styles and what they cost at each finish level, see Top Duplex House Styles Trending in India 2026.
3D elevation design in Bhopal: A modern 3D elevation costs ₹5,000–₹15,000 in Bhopal. A simple, clean elevation saves ₹3–5 lakh compared to a complex facade with curves and projections — and ages better.
Where Your ₹30 Lakhs Actually Goes
| Component | Estimated Cost | % of Budget |
|---|---|---|
| Foundation & structure | ₹9L–₹12.6L | 35% |
| Brickwork & plaster | ₹3L–₹4L | 12% |
| Electrical & plumbing | ₹2.7L–₹3.6L | 10% |
| Flooring & tiles | ₹3L–₹4L | 11% |
| Doors & windows | ₹2L–₹3L | 8% |
| Paint & finishing | ₹1.8L–₹2.8L | 9% |
| Labour & miscellaneous | ₹4L–₹5.4L | 15% |
| Total | ₹27.6L–₹36L |
Fly ash brick vs clay brick in Bhopal: Fly ash bricks cost ₹5.50 per piece in Bhopal and save approximately 20% on walling cost — around ₹55,000 for a 1,000 sq ft house compared to clay brick. They also require less plaster and perform better on black cotton soil due to their dimensional stability.
→ Want to know exactly what your 30x40 project should cost? Get free competing quotes from verified contractors in Bhopal on BidandBuild — no signup needed.
7 Ways to Actually Stay Under ₹30 Lakhs in Bhopal
- Keep the elevation simple. Complex facades with curves and projections add ₹3–5 lakh. A clean rectangular elevation costs less and looks better longer.
- Fix your 30x40 makan ka naksha before construction begins. A design change during construction costs 3–4 times more than getting it right on paper.
- Use standard room sizes. Dimensions like 10×12 or 12×12 use material lengths efficiently. Odd dimensions create cutting waste that gets billed to you.
- Use fly ash bricks, not clay. Saves approximately 20% on walling cost with better performance in Bhopal's soil conditions.
- Compare at least three contractor quotes. The difference between the highest and lowest credible quote for the same project in Bhopal is typically ₹4–8 lakh — you won't know you're overpaying without a comparison.
- Buy cement and steel strategically. Prices fluctuate 5–10% across the year. Bulk purchasing when prices dip saves real money over a 6–10 month build.
- Plan for G+1 structurally now, build only ground floor. Design the columns and foundation for a future first floor today — it costs ₹1–2 lakh extra now versus ₹6–10 lakh to retrofit later.
Why Skipping the Architect Is a False Economy
Many Bhopal homeowners skip hiring an architect to save ₹50,000–₹1,50,000. In practice, a qualified architect typically saves far more than their fee — by catching black cotton soil issues before the foundation is poured, by reducing material wastage in the layout, and by producing BMC-approved drawings that banks require before releasing a construction loan.
A poorly planned 30x40 home is also harder to sell, harder to extend, and expensive to modify after construction. The savings from skipping an architect are almost never real savings. For a complete guide on evaluating and hiring the right architect in Bhopal, see Best Architects in Bhopal 2026 and How to Hire an Architect, Contractor, or Interior Designer in India.
₹30 Lakhs vs ₹35 Lakhs — What the Extra ₹5 Lakhs Buys
| ₹30 Lakh Budget | ₹35 Lakh Budget | |
|---|---|---|
| Built-up area | 900–1,000 sq ft | 1,100–1,200 sq ft |
| Flooring | Local tiles | Vitrified tiles |
| Kitchen | Basic platform | Modular kitchen platform |
| Ceiling | No false ceiling | False ceiling in living |
| Contingency room | Tight | Comfortable |
If your budget is tighter than ₹30 lakhs, see what's achievable at ₹25 lakhs and ₹20 lakhs on a smaller plot — both guides use the same city-wise and zone-wise breakdown approach as this article.
Frequently Asked Questions
Can I build a 3BHK on a 30x40 plot in Bhopal under 30 lakhs in 2026?
Yes — a compact ground floor 3BHK of 1,000 sq ft can be built in ₹27–₹30L in Bhopal in 2026 with basic to standard finish, provided your plot is not on black cotton soil that requires a more expensive foundation.
What is the best 30x40 ghar ka naksha with car parking?
A 10×14 ft parking bay in front with the staircase tucked into the parking zone, a living room of 14×12 ft, and three bedrooms fits comfortably on 1,000 sq ft built-up. This layout fits one car and two bikes in parking.
How much does a 30x40 duplex cost in Bhopal?
A standard 1,800–2,000 sq ft G+1 duplex on a 30x40 plot costs ₹45L–₹65L in Bhopal in 2026, depending on zone, soil, and finish level.
What is the BMC FAR for a 30x40 plot in Bhopal?
BMC allows a FAR of 1:1.5 to 1:2 on a 30x40 plot, meaning you can build a total of 1,800–2,400 sq ft across all floors on a 1,200 sq ft plot.
What is the extra cost for black cotton soil in Bhopal?
Normal soil footing costs ₹2.2–₹3.5L for 1,000 sq ft. Black cotton soil in areas like Kolar Road and Bawadia Kalan requires pile or raft foundation costing ₹8–₹15L. Always get a soil test before finalising your foundation.
Fly ash vs clay brick — which is better in Bhopal?
Fly ash brick is the better choice for Bhopal — it costs ₹5.50 per piece, saves approximately 20% on walling cost, requires less plaster, and performs better on black cotton soil due to dimensional stability.
How many floors are allowed on a 30x40 plot in Bhopal?
BMC allows G+2 if your road is 30ft or wider. In practice, most Bhopal homeowners build G+1, with structural provisions laid for a future additional floor.
